🚀 Getting Started

Congratulations on your new radio! This guide will take you from unboxing to your first successful (and legal) transmission.

⚠️ READ THIS FIRST: Before You Transmit

Listening is free; transmitting requires a license.

The BaoFeng BF-888S and Arcshell AR-5 are powerful handheld radios. In the United States, transmitting on these radios requires a valid Amateur Radio (Ham) license.

Listening (Receiving): Perfectly legal for anyone. Feel free to scan and listen!
Transmitting: Illegal without a license. Fines can reach up to $10,000.
Factory Channels: The default channels often conflict with emergency services (Police/Fire/EMS). Do not press the PTT (Push-To-Talk) button until you have programmed legal frequencies.

Learn how to get licensed →

🏁 Quick Start Guide

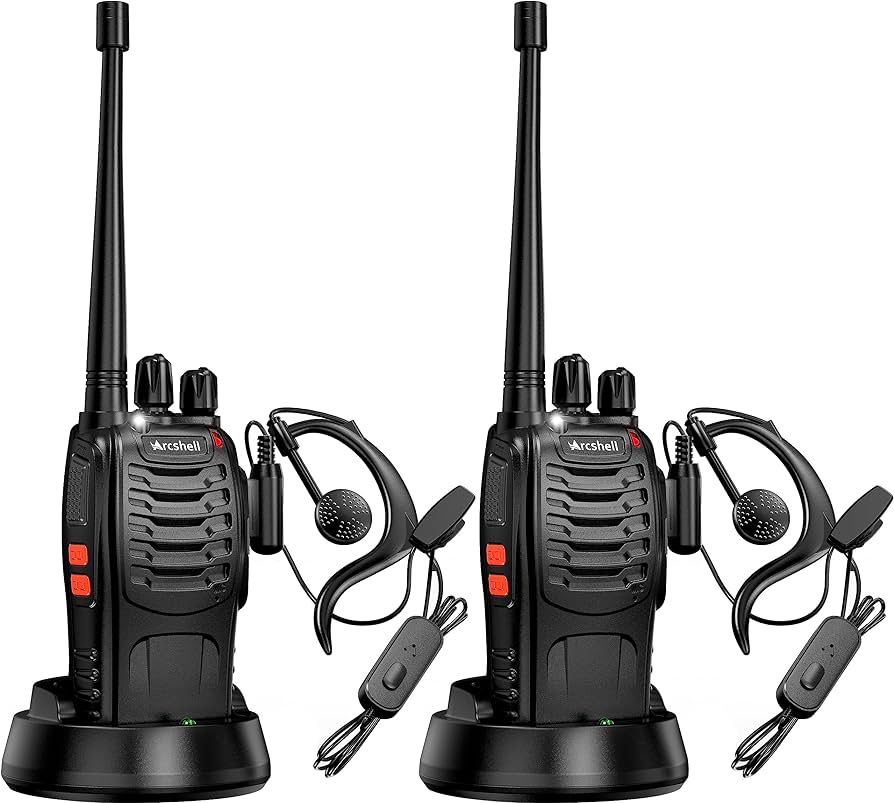

Arcshell AR-5 Pair

Charge your radios: Place the radios in their charging cradles for 2-3 hours until the LED turns green.
Learn the controls:
- Top Knob (Right): Power and Volume.
- Top Knob (Left): Channel selector (1-16).
- Side Button (Big): PTT (Push-To-Talk) - Hold to speak.
- Side Button (Small Top): Monitor - Hold to hear background static (squelch override).
Learn the Lingo: Amateur radio has its own language. Familiarize yourself with common terms like “73” (Best regards) and “QSO” (Conversation).
Listen Only: Turn the radio to an active channel and just listen to how other operators communicate.
Get Licensed: It usually takes about 2 weeks of casual study to pass the Technician exam.
Program Your Radio: Use a programming cable and CHIRP software to configure legal frequencies.

✅ Initial Setup Checklist

Use this checklist to ensure you’re ready for the airwaves:

Fully Charged: Radio battery is at 100%.
Legal Awareness: I understand where and when I can legally transmit.
Programming Cable: Obtained a compatible K1-style USB cable.
CHIRP Installed: Software is ready on my computer.
Factory Backup: I have downloaded and saved the original radio settings.
Frequencies Programmed: I have uploaded legal Amateur or FRS/GMRS frequencies.
Callsign: I have my FCC-issued callsign (if transmitting on Ham bands).

Next Steps

Ready to dive deeper?
